Description

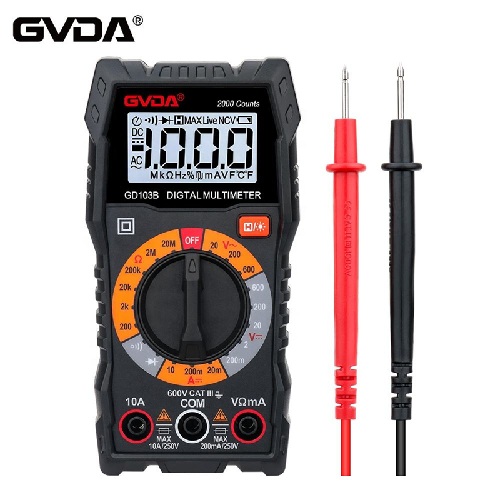

DG103B Digital Multimeter
GVDA GVDA China 2000 Counts Multi tester Manual range Electric Pocket multimeter
Need to test electricity or solve automotive & household electrical problems with multimeter? Want more accurate range display as 2000 counts, leading top of current technology? You can choose our GVDA multimeter. This brand new multi-functional multimeter with high precision and high performance MCU processor can measure DC/AC voltage/dc current, resistance. It can also test diode and continuity. With a bracket on the back, convenient to place it on the table and read the values.
Product Features
1) Input polarity indication: automatically display “-”
2) Maximum display: 2000 Counts display
3) MAX. Voltage between terminals and earth ground: 600V
4) Sampling Rate: About 3 times per second
5) Over range display: the highest position shows “OL”
6) Low voltage display: low battery indication
7) Working environment: 0-40°C,relative humidity ＜80%
8) Power Supply: 2×1.5V Batteries ( NOT include)
9) Bracket design
|
Specifications
|
Range
|
Accuracy
|
|
DC Voltage
|
200mV/2V/20V/200V/600V
|
(1.0%+5)
|
|
AC Voltage
|
20V/200V/600V
|
(1.0%+5)
|
|
DC Current
|
20mA/200mA/10A
|
(1.5%+5)
|
|
Resistance
|
200/2K/20K/200k/2M/20MΩ
|
(1.2%+5)
|
|
Display
|
2000 Counts
|
|
|
Auto/Manual Range
|
Manual Range
|
|
|
Diode Test
|
Yes
|
|
|
Continuity
|
Yes(LED and Buzz)
|
|
|
Data hold
|
Yes
|
|
|
True RMS
|
Yes
|
|
|
Low battery indication
|
Yes
|
|
|
Auto Power off
|
Yes
|
|
|
Back light
|
Yes
|
|
|
Power
|
2*1.5V AAA batteries
|
|
|
Weight
|
Approx.91g
|
|
|
Size
|
151mm*75mm*48mm
|
|
|
Safety Rating
|
EN61010-1,-2-030 EN61010-2-033 CATIII 600V
|
|
|
Packing Contents
|
1pc Multimeter / 1pc pen cable / 1pc cloth bag/ 1pc user manaul
|
|
