Description

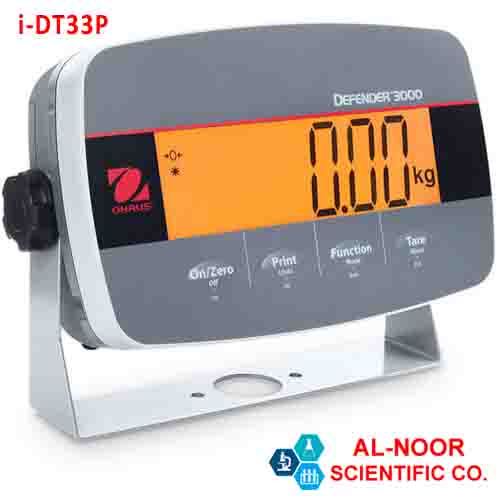

i-DT33P Ohaus Weighing Indicator
ABS Plastic Indicator for Basic Industrial Applications
Designed with affordability in mind for basic industrial applications, the i-DT33P indicator combines high-impact ABS housing with a large multicolor backlit LCD display and
bi-directional RS232. The i-DT33P also features software for Weighing, Parts Counting, Checkweighing, and Totalization.
Applications
Weighing, Parts Counting, Checkweighing, and Totalization
Display
7 Segment LCD with multicolor backlight
Operation
Internal power supply with power cord (included), 6C (LR14) Batteries (not included) or Rechargeable Battery
Communication
Standard RS232 and optional USB Device or Ethernet
Construction
ABS housing and powder-coated steel mounting bracket
Specifications
i-DT33P i-DT33XW
Accessories
Ethernet Kit………………………………………………………………………30429666
USB Device Kit i-DT33 …………………………………………………….30699120
Dust Cover i-DT33 …………………………………………………………..30699121
SF40A Printer …………………………………………………………………..30045641
Cable RS232 i-DT33P………………………………………………………80500525
Cable RS232 i-DT33XW…………………………………………………..80500552
OHAUS Asia/Pacific
Headquarters
7F, Block 33, 680 Guiping Road
Shanghai 200233
China
e-mail: APmarketing@ohaus.com
Tel: +86 21 64855408
With offices throughout
Europe, Asia, and
Latin America
* ISO 9001:2008
Registered Quality
Management System
MODEL I-DT33P I-DT33XW
Construction ABS housing, powder coated steel mounting bracket 304 stainless steel housing and mounting bracket
Protection IP54 (with optional dust cover) IP66
A/D conversion rate 80 Hz
Capacity Selections Up to 99,999 g/kg/lb/t
Maximum displayed resolution 1:30,000
Maximum approved resolution 1:6,000 (NTEP/Measurement Canada) Class III, 1:10000 or 2 × 3000e Class III @ 1 µV/e (EC, OIML)
Weighing Units g, kg, lb, oz, lb:oz, t
Application Modes Weighing, Counting, Checkweighing, Totalization
Display 45mm digit height LCD display with 3-color backlight
Keyboard 4 function keys
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Calibration Zero, Span or 3 point-Linear
Span calibration 1 kg or 1 lb to capacity
Internal Resolution 68,500 counts per mV/V per second
Digital Filtering/Type Averaging
Load cell excitation voltage 5VDC
Load cell drive Up to 6 x 350 ohm load cells
Load cell input sensitivity Up to 3 mV/V
Stabilization time Within 1 second
Power 100-240 VAC / 50/60 Hz Universal Power Supply or
standard rechargeable battery
100-240 VAC / 50/60 Hz Universal Power Supply, hardwired
or standard rechargeable battery
Battery Life Up to 100 hours continuous use with backlight off (rechargeable battery)
Interface RS232 included, Optional USB, Ethernet
Shipping Dimensions 300 x 265 x 135 mm
Product Dimensions (with bracket) 251.6 x 177 x 81 mm 256 x 206 x 74 mm
Approx. Net Weight 1.9 kg 3 kg
Approx. Shipping Weight 2.3 kg 3.4 kg
Operating Temperature Range -10°C to 40°C
i-DT33P i-DT33XW
Accessories
Ethernet Kit………………………………………………………………………30429666
USB Device Kit i-DT33 …………………………………………………….30699120
Dust Cover i-DT33 …………………………………………………………..30699121
SF40A Printer …………………………………………………………………..30045641
Cable RS232 i-DT33P………………………………………………………80500525
Cable RS232 i-DT33XW…………………………………………………..80500552
OHAUS Asia/Pacific
Headquarters
7F, Block 33, 680 Guiping Road
Shanghai 200233
China
e-mail: APmarketing@ohaus.com
Tel: +86 21 64855408
With offices throughout
Europe, Asia, and
Latin America
* ISO 9001:2008
Registered Quality
Management System
MODEL I-DT33P I-DT33XW
Construction ABS housing, powder coated steel mounting bracket 304 stainless steel housing and mounting bracket
Protection IP54 (with optional dust cover) IP66
A/D conversion rate 80 Hz
Capacity Selections Up to 99,999 g/kg/lb/t
Maximum displayed resolution 1:30,000
Maximum approved resolution 1:6,000 (NTEP/Measurement Canada) Class III, 1:10000 or 2 × 3000e Class III @ 1 µV/e (EC, OIML)
Weighing Units g, kg, lb, oz, lb:oz, t
Application Modes Weighing, Counting, Checkweighing, Totalization
Display 45mm digit height LCD display with 3-color backlight
Keyboard 4 function keys
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Calibration Zero, Span or 3 point-Linear
Span calibration 1 kg or 1 lb to capacity
Internal Resolution 68,500 counts per mV/V per second
Digital Filtering/Type Averaging
Load cell excitation voltage 5VDC
Load cell drive Up to 6 x 350 ohm load cells
Load cell input sensitivity Up to 3 mV/V
Stabilization time Within 1 second
Power 100-240 VAC / 50/60 Hz Universal Power Supply or
standard rechargeable battery
100-240 VAC / 50/60 Hz Universal Power Supply, hardwired
or standard rechargeable battery
Battery Life Up to 100 hours continuous use with backlight off (rechargeable battery)
Interface RS232 included, Optional USB, Ethernet
Shipping Dimensions 300 x 265 x 135 mm
Product Dimensions (with bracket) 251.6 x 177 x 81 mm 256 x 206 x 74 mm
Approx. Net Weight 1.9 kg 3 kg
Approx. Shipping Weight 2.3 kg 3.4 kg
Operating Temperature Range -10°C to 40°C
