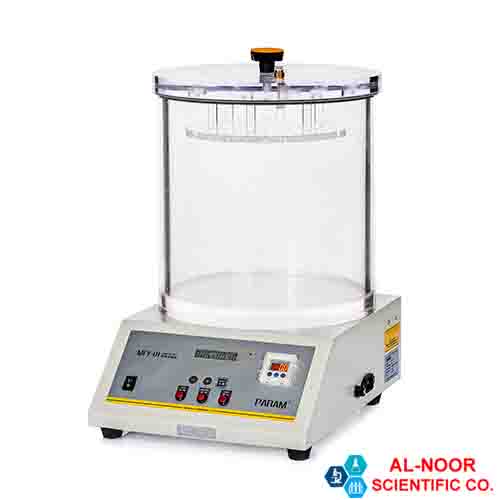

MFY-01 Leak Test Apparatus, Labthink

Description

MFY-01 Leak Test Apparatus, Labthink

MFY-01 Leak Tester is professionally designed for leakage test
of packages for food, drugs, medical instruments, daily chemical
products, cars, electronic components, stationeries and other
industrial products. The instrument also can be used to test seal
performance of specimens after falling and compression tests.
Professional Technology
 The instrument utilizes the digital preset design of vacuum degree
and vacuum retention time to ensure the accuracy of test data
 Top quality parts and components made by world famous brands are used to ensure reliable overall product
performance
 Specimens could be tested in the preset vacuum condition by automatic compensation of constant pressure
 Professional software supports automatic back flushing and test termination to provide a safe test
environment
 The instrument is controlled by micro-computer, with LCD and PVC operation panel, which is convenient
for customers to test and view test data

Test Principle
Firstly submerge the specimen in the water within the vacuum chamber, and then evacuate the vacuum chamber to
form differential pressure between the inside and outside of specimen. The leakage property could be obtained by
observing the steady progression of bubbles from the specimen and how the specimen expands and restores to its
original shape after vacuum release.
This test instrument conforms to the standards: GB/T 15171, ASTM D3078

Applications
MFY-01 leak tester is applicable to the determination of leakage property of:
Basic Applications
Glass Bottles, Pipes, Cans and Boxes
Plastic Bottles, Pipes, Cans and Boxes
Metal Bottles, Pipes, Cans and Boxes
Paper Plastic Composite Bags and Boxes
Extended Applications
Pen Refills
Electronic Components
Medical Instruments

Technical Specifications

Specifications MFY-01
Vacuum Degree 0 ~ – 90KPa
Accuracy 1% FS
Vacuum Chamber
Effective Sizes
Φ270 mm x 210 mm (H) (standard)
Φ360 mm x 585 mm (H) (optional)
Φ460 mm x 330 mm (H) (optional)
Note: customization is available for other sizes
Gas Supply Pressure 0.7 MPa (outside of supply scope)
Port Size Φ6 mm PU Tubing
Instrument Dimension 300 mm (L) x 380 mm (W) x 450 mm (H)
Power Supply 220VAC 50Hz / 120VAC 60Hz
Net Weight 12 kg
Note: 1. The gas supply port of the instrument is Φ6 mm PU tubing;
2. Customers will need to prepare for gas supply.
Please Note: Labthink is always dedicated to the innovation and improvement of product performance and
function. Therefore, technical specifications are subject to change without further notice. Please visit our website
at www.labthink.com for the latest updates. Labthink reserves the rights of final interpretation and revision.
