Description

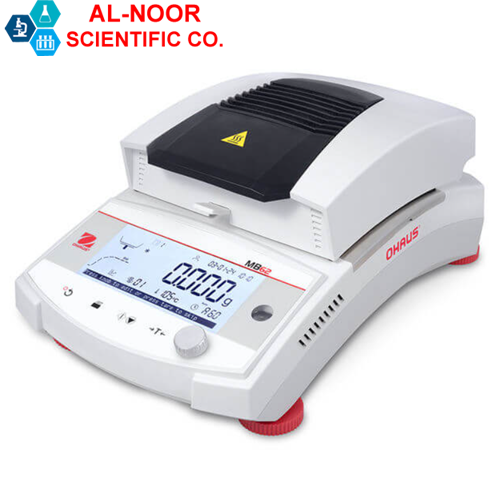

Ohaus MB62 Moisture Analyzer 0.001g-90gm
Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display
5″ LCD with 2nd line display
Operation
Internal power supply with power cord (included)
Communication
RS232, USB device
Construction
Carbon fiber heat source, PBT housing, die casting aluminum base, metal pan support, metal pan handler, in use cover
Design Features
Seven shut-off criteria (manual, timed, A10, A30, A60, A90, A160), four drying profiles (standard, fast, ramp, step), storage up to 20 methods and 100 results for all methods, 10 sample ID, 40-200℃ heating range, multiple operational languages
Specifications
| Maximum Capacity | 90 g |
| Readability Moisture Content | 1 mg/0.01% |
| Pan Size | 3.5 in (90 mm) |
| Heater Type | Carbon fiber |
| Communication | USB device; RS232 |
| Recommended Moisture Content MC% | 0.5 % – 100 % |
| Adjustment | Temperature Adjustment – Mechanical (100℃, 160℃); Weight Adjustment – External (50g) |
| Dimensions | 13.9 in x 5.4 in x 8.3 in (352 mm x 138 mm x 210 mm) (LxHxW) |
| Display | 5″ LCD with 2nd line display |
| Display Results | RG%; Temperature; DC%; Time; Method No.; MC%; Weight |
| Heating Profiles | Ramp; Standard; Step; Fast |
| ID Management | Sample ID |
| In-Use Cover | Included |
| Moisture Range | 0.01 % – 100 % |
| Net Weight | 9.5 lb (4.3 kg) |
| Operating Range (Temp.) | 10 °C – 40 °C |
| Operation Instructions | Graphic Instruction; On-screen Instruction; Progress Indicator |
| Repeatability | 0.018% (10g sample); 0.10% (3g sample) |
| Shut-Off Criteria | Timed; 5 Auto; Manual |
| Status Light | Multi-color status light |
| Stored Results | 100 |
| Temperature Range | 40 °C – 200 °C |
| Test Library | 20 |
