Description

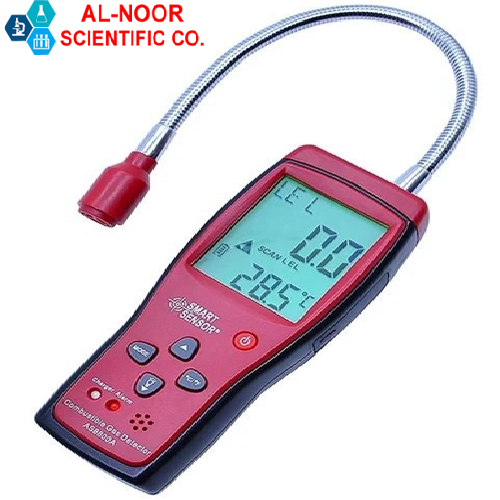

SMART SENSOR Combustible Gas Detector AS8800A
- A gas detector is a device that detects the presence of gases in an area, often as part of a safety system.
- This type of equipment is used to detect a gas leak and interface with a control system so a process can be automatically shut down.
- A gas detector can sound an alarm to operators in the area where the leak is occurring, giving them the opportunity to leave.
- This type of device is important because there are many gases that can be harmful to organic life.
- Gas detectors can be used to detect combustible, flammable and toxic gases, and oxygen depletion, etc.
- This type of device is widely used in industry and can be found in locations, such as on oil rigs,
- to monitor manufacture processes and emerging technologies such as photovoltaic. They may also be used in firefighting.
Specification:
| Gas Type | Combustable Gas |
| Measuring Range | 0~50% LEL |
| Resolution | 0.1% LEL |
| Basic error | ≤5% F · S |
| Warm up time | 120 sec |
| Response Time | T90<10 sec |
| Measuring Principle | Catalytic Combustion |
| Recovery Time | <30 sec |
| Display | Large LCD Display |
| Alarm | Sound, Light Alarm |
| Operation Tempearture | -10 °C ~ 50°C |
| Operation Humidity | <95%RH (Non Gel) |
| Temp. Measuring | √ |
| Auto Power Off | √ |
Packing Information:
| Power | Li-battery |
| Product Net Weight | 115g |
| Product Size | 1160 x 63 x 30mm |
