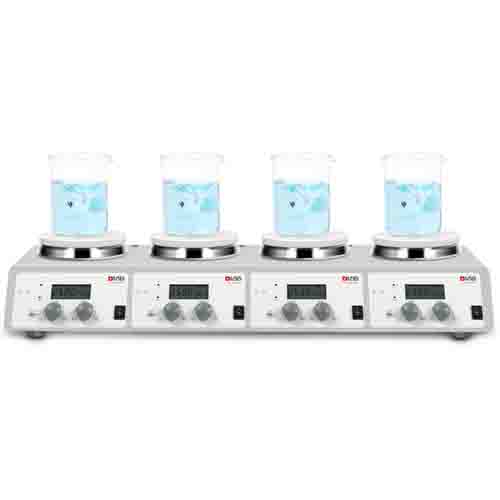

DLAB MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer

Description

DLAB MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer

DLAB, USA

• Independent heating and stirring control for each position
• LCD display shows real-time temperature and speed
• PID controller ensures a precise          and stable heating process (maximum temperature up to 340℃)
• Brushless DC motor is quiet, reliable & maintenance free, and provides more powerful speed control
• External temperature sensor (PT1000) with accuracy 0.2℃
• Overheating protection temperature at 420℃
• Stainless steel work plate with ceramic  coating provides good chemical resistance
• Wide variety of accessories available to choose from

PRODUCT PARAMETERS

• Cat.No. 8030271110
• Work plate Dimension :Ø 135mm(5inch) x 4
• Work plate material : Stainless steel with ceramic coating
• Max. stirring quantity [H2O] : 10L x 4
• Speed range : 200-1500rpm
• Speed display : LCD
• Temperature display : LCD
• Heating temperature range : 25-340℃
• Temperature control accuracy : ±1℃（＜100℃），±1%（＞100℃）
• Temperature display accuracy : ±0.1℃
• External temperature sensor : PT1000( accuracy±0.2℃ )
• “Hot” warning : –
• Overheating temperature protection : 420℃
• Motor type : Brushless DC motor
• Stirring positions : 4
• Max. magnetic bar length : 40mm
• Data connector: –
• Timer function : –
• Protection class : IP20
• Motor rating input : –
• Motor rating output : 1.8W x 4
• Power : 515W x 4
• Heating output : 500W x 4
• Voltage,Frequency : 100-120V/200-240V,50/60Hz
• Dimension [WxDxH] : 698x270x128mm
• Weight : 9.5kg
• Permissible ambient temperature : 5-40℃
• Permissible ambient humidity : 80% RH
