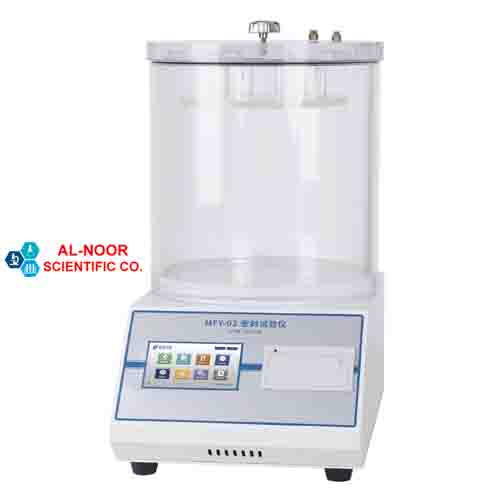

MFY-02 Leak Test Apparatus

Description

MFY-02 Leak Test Apparatus

MFY-02 Leak Tester is professionally designed for the leakage test of the soft package used in food,
wipe, medical, electronic component, stationery, and other industrial products.
Features
 Built-in air source unit.
 5-inch touch interface is more convenient to operate.
 Automatic controlling process: vacuum, multi-grade maintain pressure, replenish pressure, timing,
back blow, print, save and upload data.
 Preset data and power-off memory.
 Micro-Printer and USB.
Principle
Firstly submerge the specimen in the water within the chamber, and then evacuate the vacuum
chamber to form differential pressure between the inside and outside of the specimen. The leakage
property could be obtained by observing the steady progression of bubbles from the specimen and how
the specimen expands and restores to its original shape after vacuum release.
Standards
This test instrument conforms to many national and international standards:
ASTM D3078, GB/T 15171, GB/T 27728, YB00112002-2015, YBB00122002-2015, YBB00262002-
2015.

Applications
Basic
Applications
Glass Bottle, Pipe, Can and Box
Plastic Bottle, Pipe, Can and Box
Metal Bottle, Pipe, Can and Box
Paper Plastic Composite Bag and Box
Extended
Applications
Pen Refill
Electronic Component
Medical Instrument
Technical Specifications
Vacuum Degree 0 ~ -90kPa
Accuracy 1%FS
Effective Size of
Vacuum Chamber
Φ270mm×210 mm (H) (Standard)
Customization is available
Air Connection Ф6mm PU tube
Dimension 300 mm (L) × 380 mm (B) × 450 mm (H)
Power Supply AC 220V 50Hz
Net Weight 30 kg
Configurations
Standard: Instrument, Micro-printer, Vacuum Chamber.
Please Note: Saicheng Instrument is always dedicated to the innovation and improvement of product
performance and function. Therefore, technical specifications are subject to change without further
notice. Please visit our website at global.saicheng.cn for the latest updates. Saicheng Instrument
reserves the rights of final interpretation and revision.
