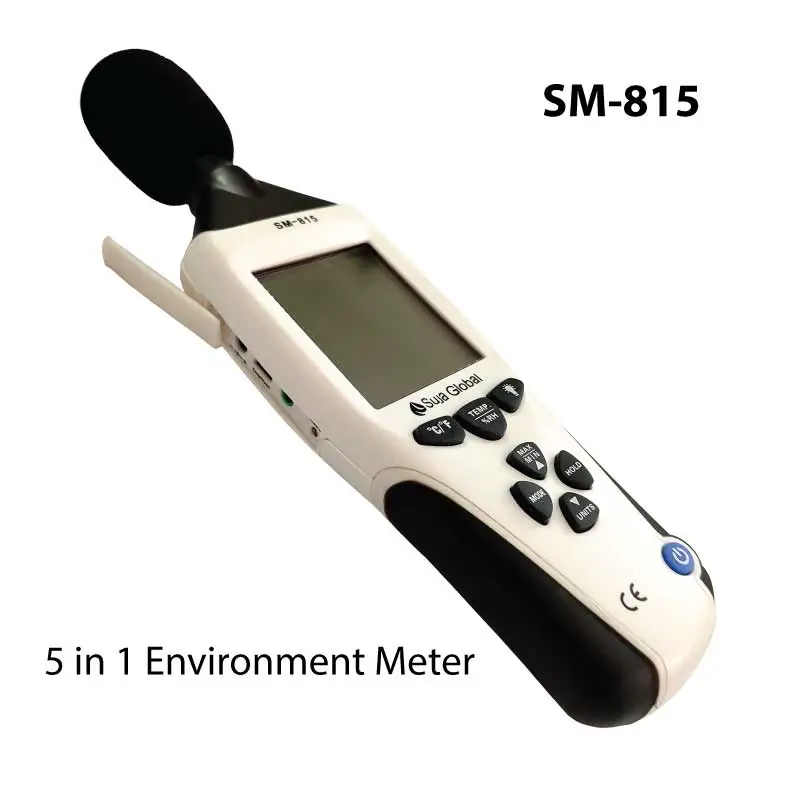

SM-815 Multifunctional 5 in 1 Environment Meter of Suja Global
The 5 in 1 digital Multifunctional Environment Meter is designed to combine the functions of a Sound Level Meter, Light Meter, Anemometer, Humidity Meter, and Temperature Meter. It is an ideal Multifunctional Environment Meter with different practical applications for professional and home use, like monitoring and collecting data on the environmental temperature and humidity, and measuring noise in factories, schools, offices, airports, homes, etc..

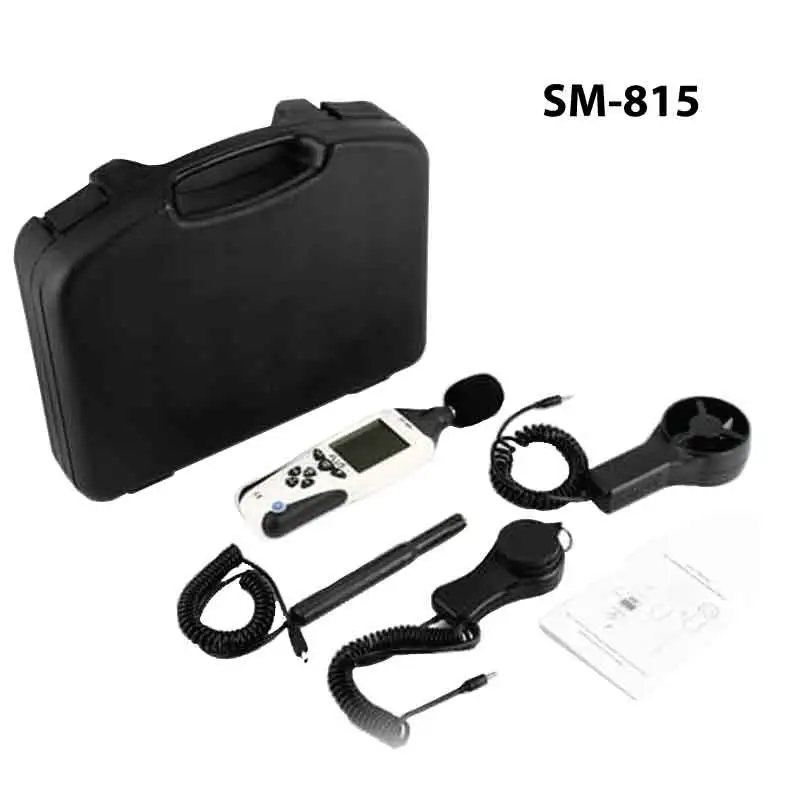

This 5 in 1 digital Multifunctional Environment Meter can measure Lux, Fc, Celsius, Fahrenheit, RH, dB-A, dB-C, dB-low and dB-high, m/s, km/h, ft./min, knots, Mph, etc environmental measurements. Large 4-digit backlight LCD display and data hold and maximum/minimum hold function. Auto power off to save battery life and Low battery indication features. Comes with: a 1 x 9 V 6F22 battery, temperature, and humidity probe, photodetector, anemometer probe, and portable smartest carry case.
SHORT DESCRIPTION OF 5 IN 1 ENVIRONMENT METER
- 5 meters have been merged into 1; Sound Level Meter, Light Meter, Anemometer, Humidity Meter, and Temperature Meter;
- Easy-to-read large 4-digit backlight LCD display;
- Data hold and maximum/minimum holding function;
- Auto power off to save battery life and low battery indication feature;

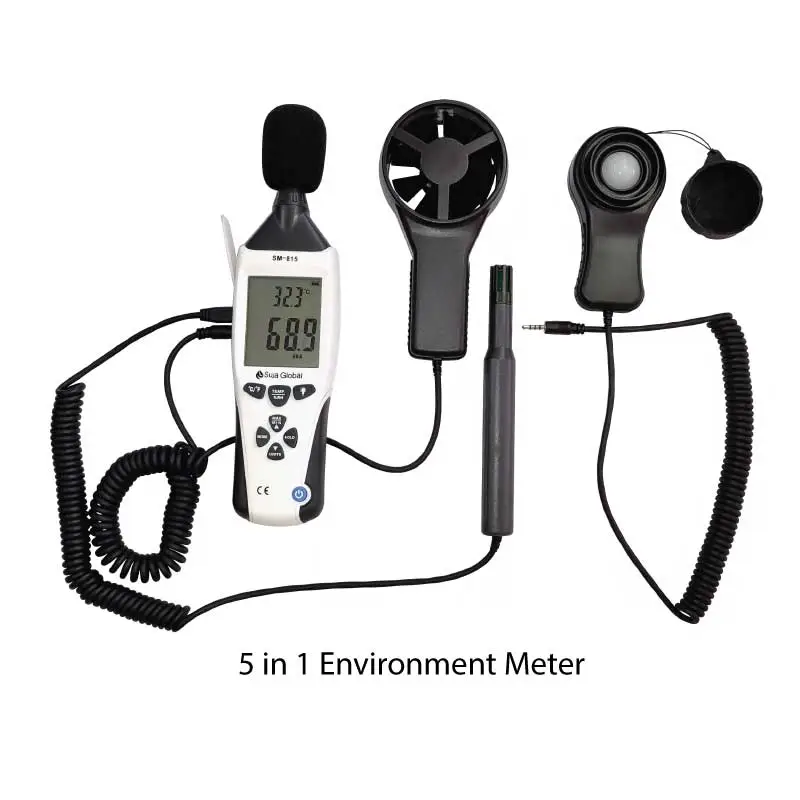

- Comes with a temperature and humidity probe, photodetector, and anemometer probe;
TECHNICAL SPECIFICATIONS OF 5 IN 1 ENVIRONMENT METER
SOUND LEVEL METER / NOICE METER
| MEASURING RANGE | AUTO: 35DB ~ 130DB |
|---|---|
| Accuracy | ± 2.0dB |
| Resolution | 0.1dB |
| Display | 4 Digits |
| Frequency Response | 31.5Hz ~ 8kHz |
| Frequency Weighing | dBA |
| Microphone | 1/2 Inch electric condenser microphone |
LIGHT METER / LUX METER / ILLUMINATION METER
| MEASURING RANGE | 0 LUX ~ 200K LUX, 0 FC ~ 20K FC |
|---|---|
| Accuracy | ±4% rdg, ±0.5% f.s. (<10,000 Lux)±5% rdg, ±10 dgts (<10,000 Lux) |
| Spectral Response | CIE photopic (CIE human eye response curve) |
| Spectral Accuracy | ≤6% |
| Photo Detector | One silicon photo diode with a filter |
AIR VELOCITY / ANEMOMETER / WIND SPEED TESTER
| MEASURING RANGE | 0.5M/S ~ 30.0M/S |
|---|---|
| Accuracy | ±3%, ±0.3d |
| Measuring Units | m/s, km/h, ft/min, knots, Mph |
TEMPERATURE DETECTION OF MULTIFUNCTIONAL ENVIRONMENT METER
| MEASURING RANGE | -40° ~ 70°C (-40° ~ 158°F) |
|---|---|
| Accuracy | ±2.0°C, ±3.6°F |
| Resolution | 0.1 |
| Measuring Units | °C / °F |
HUMIDITY / MOISTURE DETECTION OF MULTIFUNCTIONAL ENVIRONMENT METER
| MEASURING RANGE | 10 ~ 95% RH |
|---|---|
| Accuracy | ±5% RH |
| Resolution | 0.1 |
KEY SPECIFICATIONS OF 5 IN 1 ENVIRONMENT METER
| Model | SM-815 |
| Brand | SUJA GLOBAL |
| Origin | Singapore |
| Data Update | 1 time/sec |
| Maximum Value | MAX |
| Minimum Value | MIN |
| Data Hold | HOLD |
| Auto power off | Automatically power off after approx. 15 minutes of inactivity |
| Power Supply | One 9V battery with type of 006P, NEDA1604 or IEC6F22 |
| Battery Life | About 30 hours |
| Operating Condition | -20°C ~ 60°C, 10%RH ~ 90%RH |
| Storage Condition | -40°C ~ 60°C, 10%RH ~ 75%RH |
| Dimension | (L x W x H) = (252 x 66 x 33)mm |
| Weight | 568g |
CLICK HERE TO DOWNLOAD THE USER MANUAL OF THIS SM-815 SUJA GLOBAL 5 IN 1 MULTIFUNCTIONAL ENVIRONMENT METER
